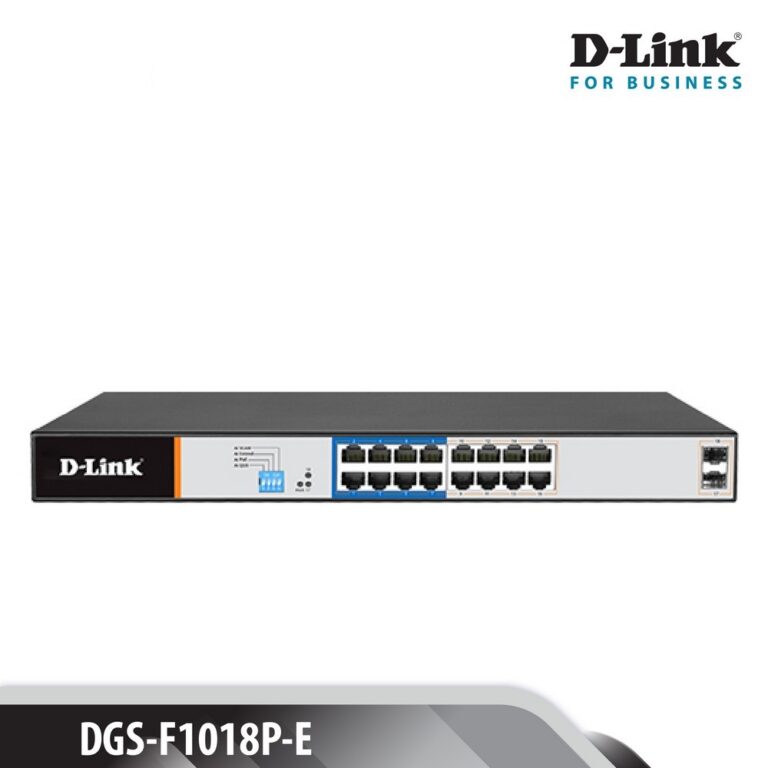

Thiết bị chia mạng Dlink DGS-F1018P-E

Thiết bị chia mạng Dlink DGS-F1018P-E

16-Port 1000Mbps PoE + 2-Port SFP Switch D-Link DGS-F1018P-E

High-Speed Networking

– 16 10/100/1000 Mbps Ethernet ports

– Full/half-duplex for Ethernet/Fast Ethernet/Gigabit

– 2 SFP Uplink

Functions

– VLAN

– EXTEND

– PoE

– QoS

Easy Setup

– Plug-and-play installation

– Auto MDI/MDI-X crossover on all ports

PoE Functionality

– Sixteen PoE ports

– IEEE 802.3af/at compliant

– 150 W total power budget

– Up to 30 W power output per PoE port

DGS-F1018P-E



Specifications

General
Size	Desktop (with Mounting Kit)
Interfaces	16 10/100/1000 BASE-T ports 2 SFP
OSI Layer	Layer 2
Media Interface Exchange	Auto MDI/MDI-X adjustment on all ports
Lighting Protection	6KV
Performance
Switching Fabric	36 Gbps
Mac address	8K
Transmission Method	Adopt Store-and-forward
Data Transfer Rates	Gigabit Ethernet: 1000 Mbps Ethernet: 100 Mbps
Packet Filtering / Forwarding Rates	10M port maximum 14800pps 100M port maximum 148800pps 1000M port maximum 1488000pps
PoE
PoE Standards	IEEE 802.3af, IEEE 802.3at
PoE-Capable Ports	Port 1 – 16 (Port 1 – 8 PoE can support up to 250m @ 10Mbps with Extend enabled)
Power Budget	150W (30 W max. per PoE port)
Physical
LED Power	Yes
LED Link/Activity	Yes
Weight	3kg
Dimensions	440 x 180 x 44 mm
Power	150W
Temperature	Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity	Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing



LIÊN HỆ NGAY FANPAGE



Thương hiệu	D-Link
Bảo hành	24 tháng
