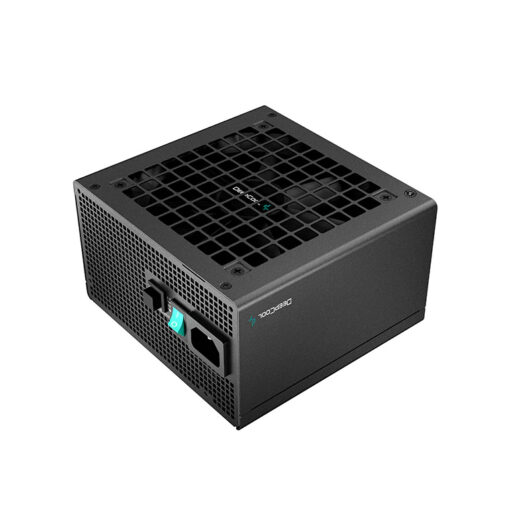

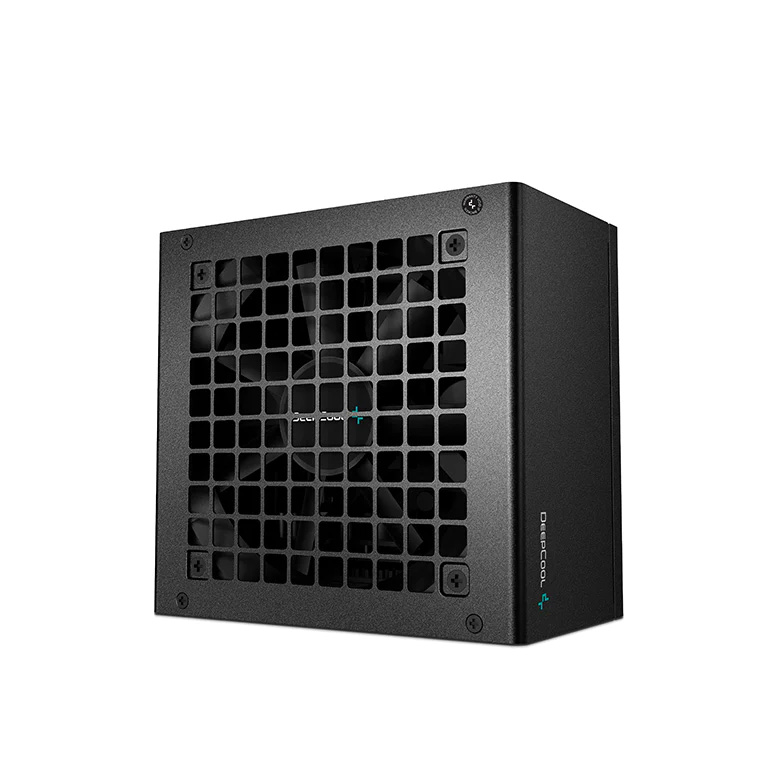

DEEPCOOL PQ1000M

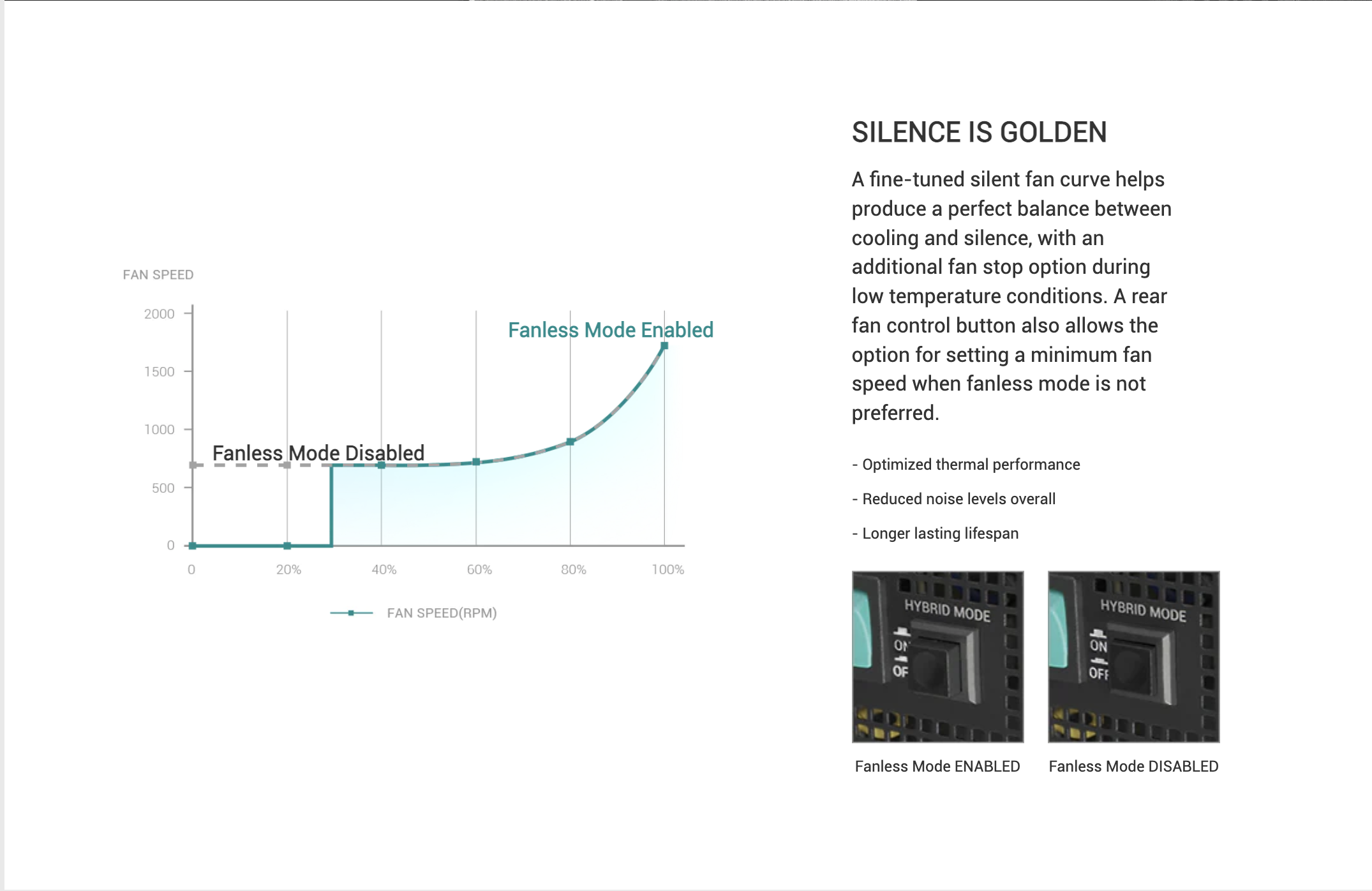

Introducing a new generation of power reliability, the DEEPCOOL PQ1000M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
Type | ATX12V V2.4 |
Product Dimensions | 150×140×86mm (W x L x H) |
80PLUS Certifications | GOLD |
Fan Size | 120mm |

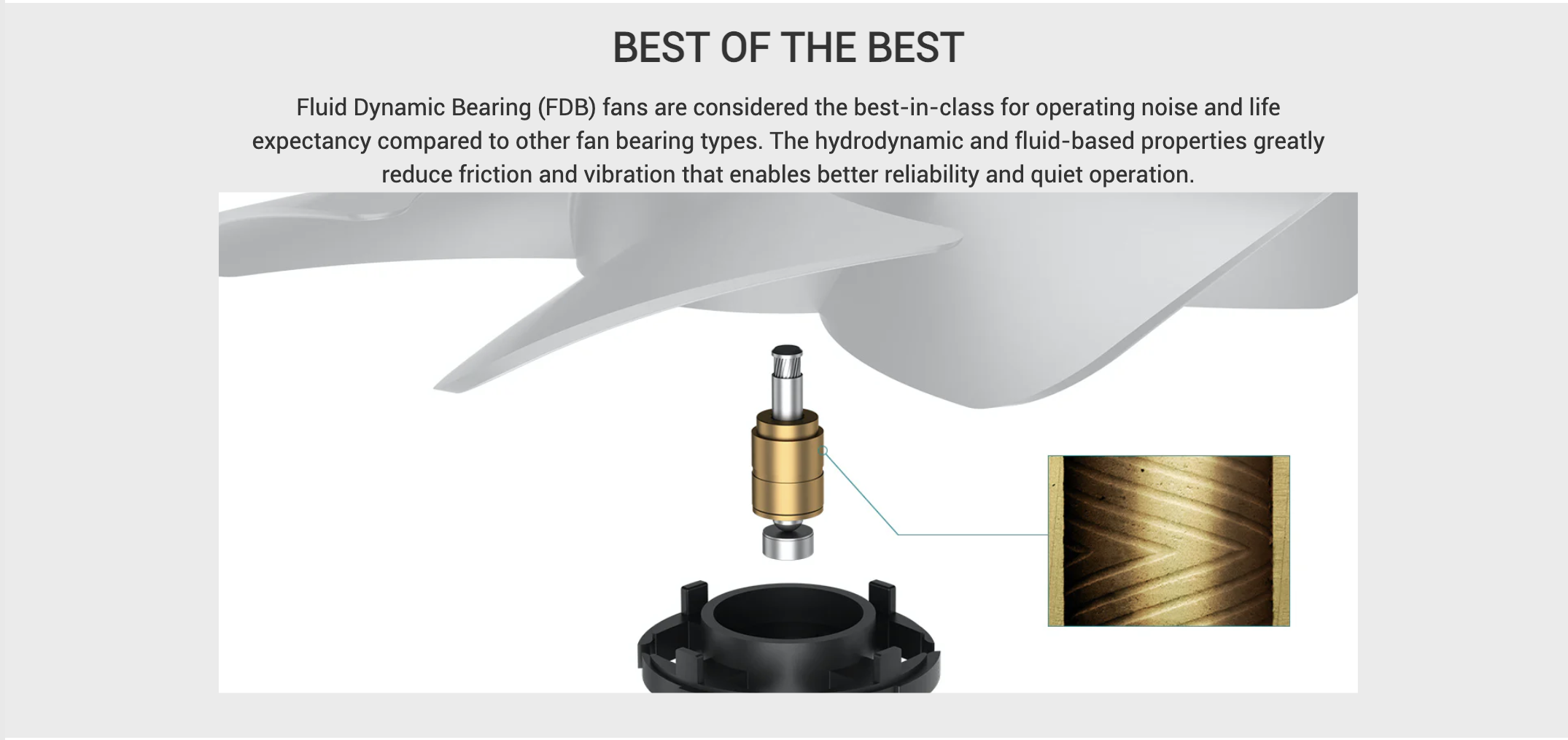

Fan Bearing | FDB |
Topology | Active PFC + Full Bridge SRC LLC + DC to DC |

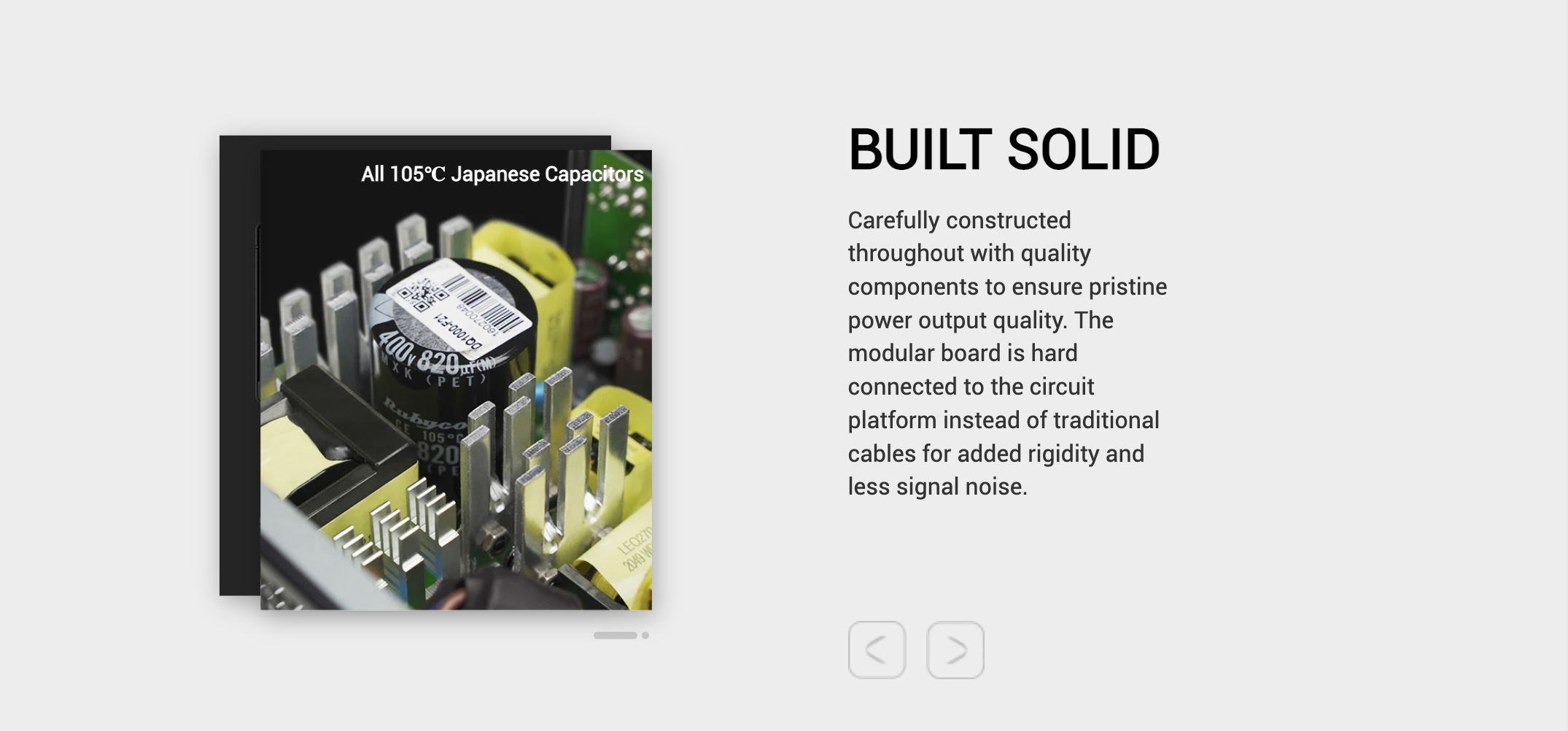

Capacitors | Full Japan Electrolytic Capacitors |
Power Good Signal | 100-500ms |
Hold Up Time | ≥16ms (80% load)) |

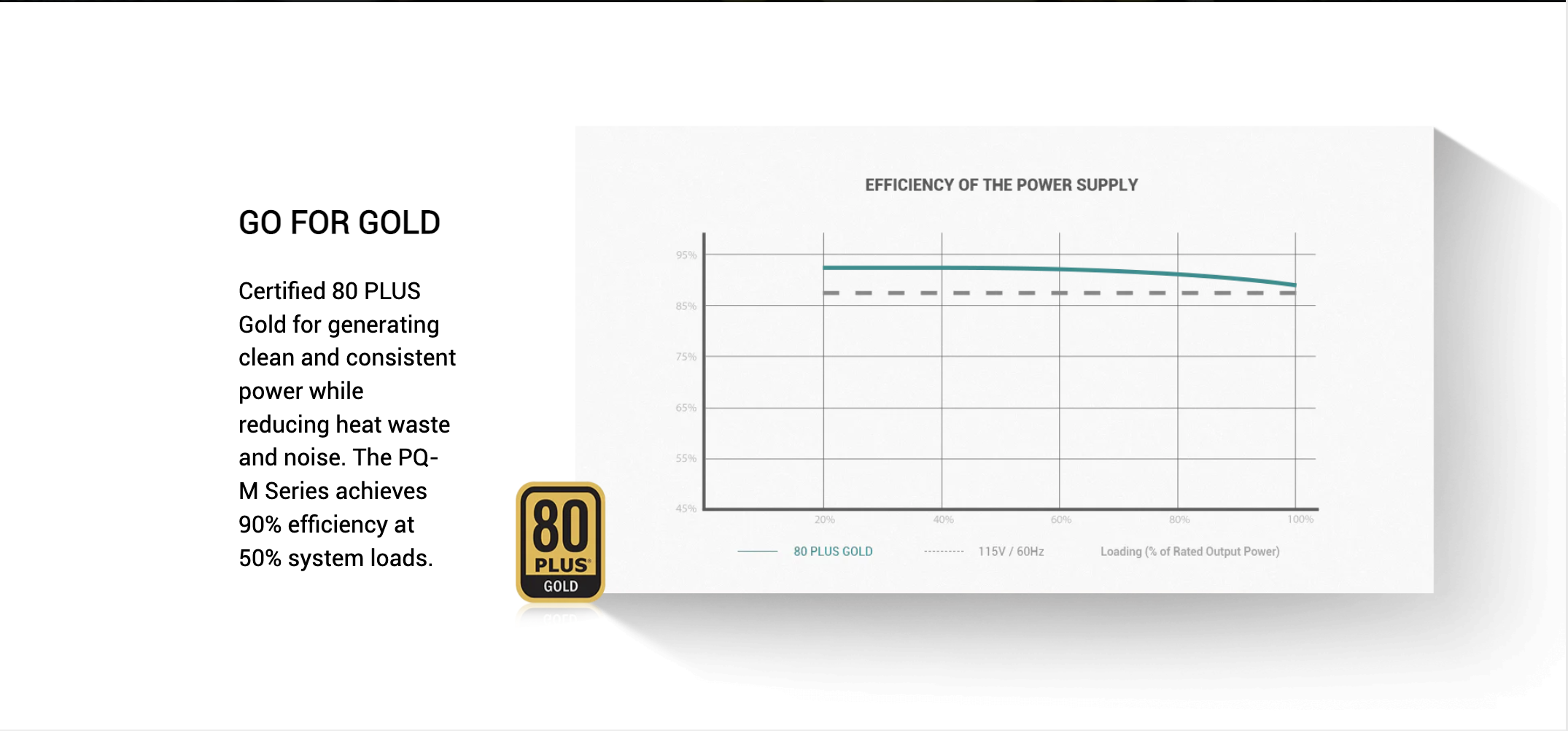

Efficiency | ≥90% Under Typical Load(50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP/UVP |
Operation Temperature | 0 – 40 °C |
Regulatory | CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA |
Erp Regulation | ErP 2013 |
MTBF | 100,000 Hours |
Warranty | 10 Years |
EAN P/N | 6933412702009 R-PQA00M-FA0B-CN 6933412702016 R-PQA00M-FA0B-AU 6933412702023 R-PQA00M-FA0B-EU 6933412702030 R-PQA00M-FA0B-JP 6933412702047 R-PQA00M-FA0B-UK 6933412702054 R-PQA00M-FA0B-US 6933412702061 R-PQA00M-FA0B-AR 6933412702078 R-PQA00M-FA0B-BR 6933412702085 R-PQA00M-FA0B-WO 6933412702092 R-PQA00M-FA0B-BP |
