MainBoard Gigabyte H410M S2

– L3 cache varies with CPU

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

Maximum shared memory of 512 MB

High Definition Audio

2/4/5.1/7.1-channel

2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)

4 x SATA 6Gb/s connectors

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

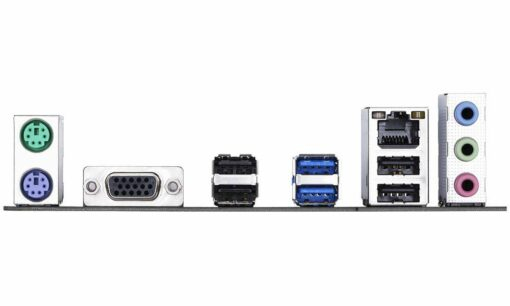

1 x PS/2 mouse port

1 x D-Sub port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer

– Support for Q-Flash

– Support for Xpress Install

Realtek^® 8118 Gaming LAN bandwidth Control Utility
