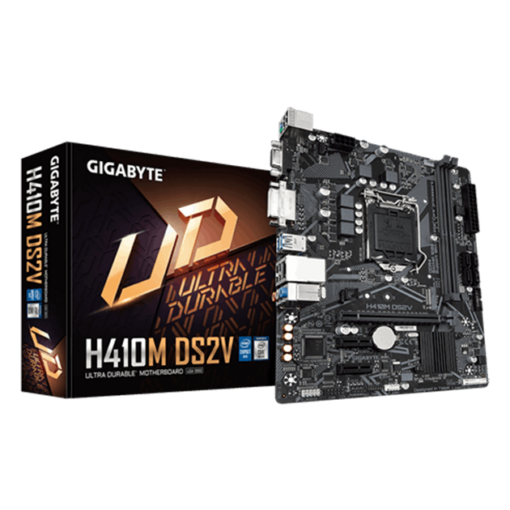

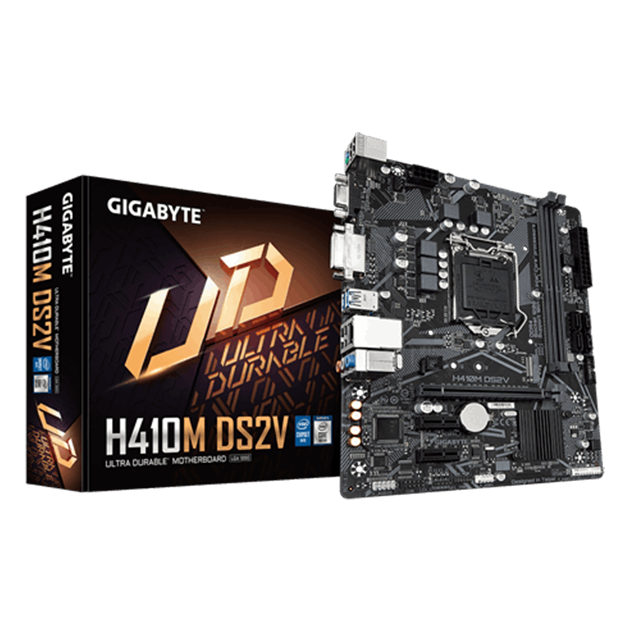

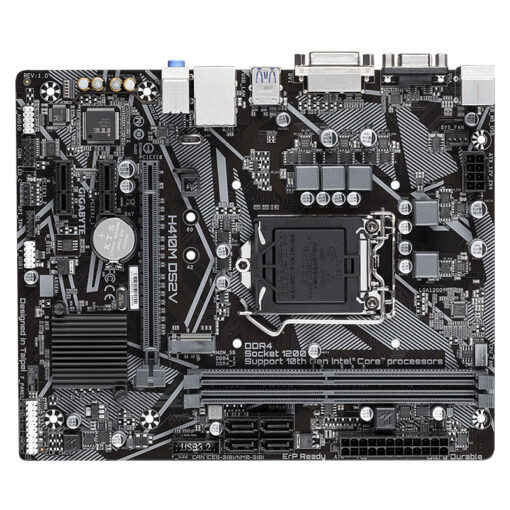

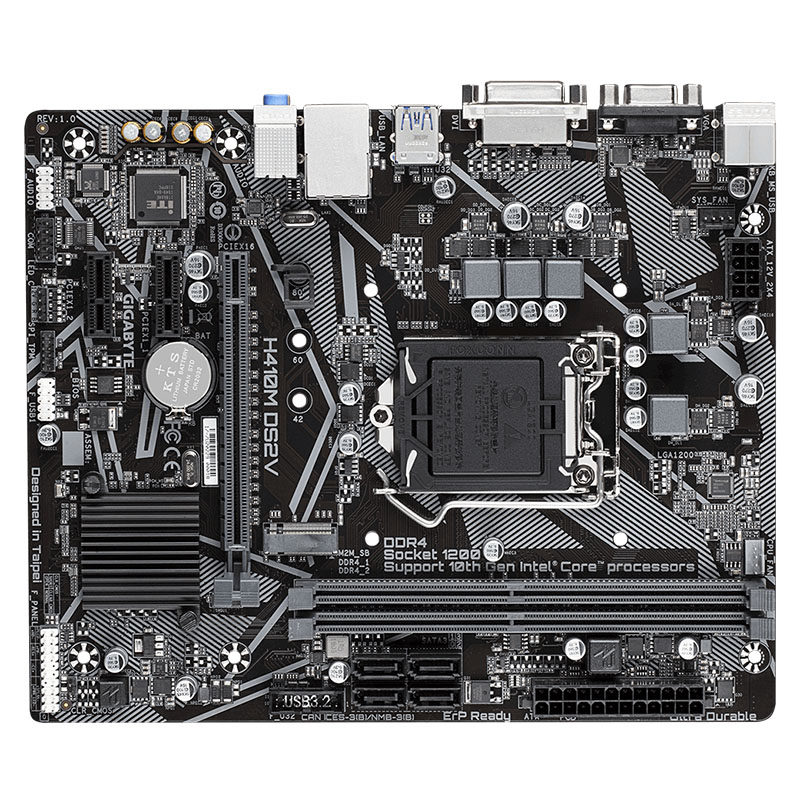

Mainboard Gigabyte H410M DS2V

1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. 1. 1. Integrated Graphics Processor-Intel^® HD Graphics support:
         1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
         2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
            * The DVI-D port does not support D-Sub connection by adapter.

         Maximum shared memory of 512 MB

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 512 MB

1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slot
   (The PCI Express slots conform to PCI Express 3.0 standard.)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
2. 4 x SATA 6Gb/s connectors
   * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 4 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

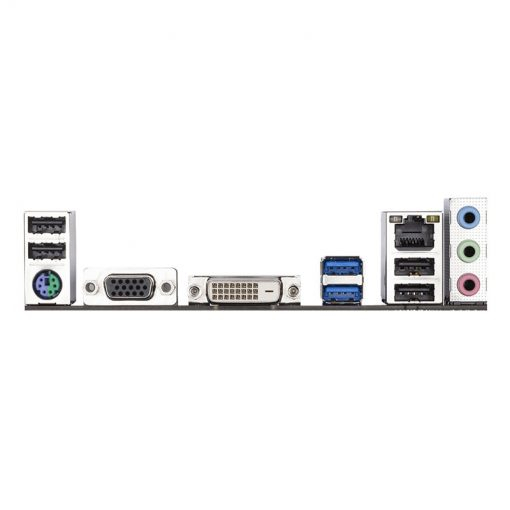

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
