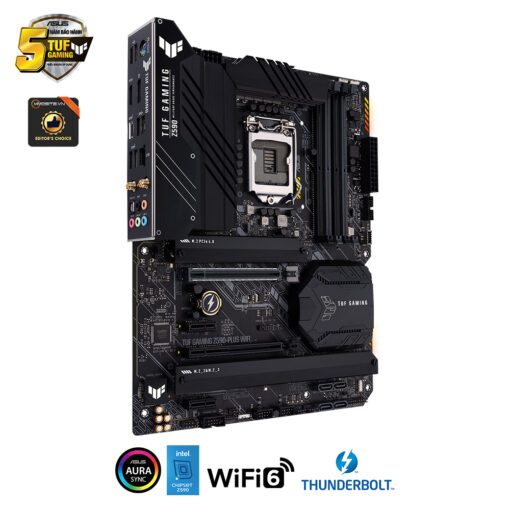

ASUS TUF GAMING Z590 PLUS WIFI
Mainboard ASUS TUF GAMING Z590-PLUS WIFI – là bo mạch chủ sử dụng chipset Z590 của Intel thuộc phân khúc tầm trung của Asus.Bo mạch chủ này sử dụng socket LGA 1200 có thể chạy được CPU Intel Core thế hệ 10 & 11.
Thiết kế
Mainboard ASUS TUF GAMING Z590-PLUS WIFI sở hữu thiết kế theo truyền thống của dòng TUF với tone màu đen vàng. Phần giáp tản nhiệt kim loại được bố trí ở các vị trí quan trọng như khe PCI-e M.2, dàn phase, chip cầu nam,…
Trang bị
- 16 phase nguồn (14+2) Dr.Mos
- Thunderbolt 4, USB 3.2 gen 2 Type C
- Wifi-6 tích hợp sẵn
- 2 Khe M.2 PCI-e gen 4
Các tính năng chính
Nâng cấp lớn nhất của các bo mạch chủ Z590 so với Z490 đó là sự hỗ trợ của kết nối PCI-e thế hệ 4.0 cho băng thông gấp đôi thế hệ 3.0 trước đó. Với sự hỗ trợ của băng thông lớn, giờ đây các ổ cứng SSD M.2 sử dụng trên bo mạch chủ Z590 có thể cho tốc dộ lên đến 7500Mb/s.
Nâng cấp thứ 2 đó là bus RAM mặc định được tăng từ 2933Mhz (Z490) lên 3200Mhz (Z590)
Ngoài ra, Asus còn tích hợp trên các bo mạch chủ của mình tính năng giảm nhiễu Audio 2 chiều cho khả năng đàm thoại rõ ràng hơn bao giờ hết.
Bo mạch chủ tích hợp trí thông minh nhân tạo
Các bo mạch chủ của Asus tích hợp trí thông minh nhân tạo được phát triển trong nhiều năm cho phép Overclock CPU, tự động điều chỉnh tốc độ quạt để tối ưu tản nhiệt và nhiều tính năng tự động khác.
Loại sản phẩm | Mainboard – Bo mạch chủ |
CPU hỗ trợ | Tích hợp Intel® Socket 1200 cho Intel® Core™ thế hệ 10 và 11 |
Chipset | Intel® Z590 Chipset |
RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR4 5133(OC) |
Hình ảnh | 1 x DisplayPort 1.4** 1 x HDMITM 2.0*** * Graphics specifications may vary between CPU types. ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
Khe cắm mở rộng | Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* – Intel® 11th processors support PCIe 4.0 x16 – Intel®10th processors support PCIe 3.0 x16 Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory. |
Ổ cứng hỗ trợ | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**** 6 x SATA 6Gb/s ports* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. **** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled. |
LAN | 1 x Intel® I225-V 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth | “Intel® Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later” |
USB | Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Âm Thanh | “Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Dedicated audio PCB layers – Audio cover |
Cổng kết nối (I/O Phía sau) | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port |
Cổng kết nối (I/O bên trong) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
Tính năng đặc biệt | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – TUF LANGuard – Overvoltage Protection ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers |
Phần mềm độc quyền | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Khả năng quản lý | WOL by PME, PXE |
Phụ kiện | Cables 2 x SATA 6Gb/s cablesMiscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF Gaming stickerInstallation Media 1 x Support DVDDocumentation 1 x TUF Certification card 1 x User manual |
Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Mã sản xuất | TUF-Gaming-Z590-PLUS-WIFI |
